Crushing Equipment

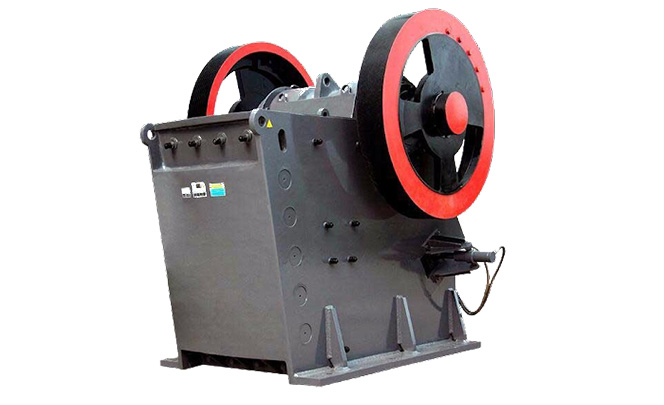

Jaw Crusher

Primary crushing for hard rock, ore, construction aggregate and recycling, with a deep symmetrical chamber for high, even capacity.

Suitable Material

GraniteBasaltLimestoneIron Ore

Technical Parameters

Type	Model	Inlet (mm)	Outlet (mm)	Max Feed (mm)	Capacity (t/h)	Ecc. Speed (r/min)	Power (kW)	Overall (mm)	Weight (kg)
Ordinary	PE100X150	100×150	5~20	80	0.5~2	300	2.2	525×535×605	230
Ordinary	PE150X250	150×250	10~40	125	2~6	300	5.5	875×745×935	1100
Ordinary	PE200X350	200×350	10~50	160	6~10	300	7.5	1080×1060×1088	1600
Ordinary	PE250X400	250×400	20~60	210	8~26	300	15	1108×1090×1392	2396
Ordinary	PE250X500	250×500	20~80	210	13~45	300	18.5	1360×1450×1440	3100
Ordinary	PE400X600	400×600	40~100	350	25~64	275	30	1650×1748×1520	5800
Ordinary	PE500X750	500×750	50~120	400	30~80	275	45	1900×1876×1821	9000
Ordinary	PE600X900	600×900	75~200	480	56~192	250	75	2280×2245×2320	16700
Ordinary	PE750X1060	750×1060	80~235	630	108~256	250	90	2450×2472×2795	28000
Ordinary	PE900X1200	900×1200	95~265	750	186~398	200	110	3335×3182×3025	50000
Ordinary	PE1100X1400	1100×1400	150~300	950	250~600	193	132	3900×3040×3875	70000
Ordinary	PE1200X1500	1200×1500	160~320	1000	280~700	190	160	3800×3040×4150	82000
Fine	PEX150X750	150×750	18~48	120	8~25	320	15	1210×1572×1045	2800
Fine	PEX200X1000	200×1000	20~55	160	12~50	330	22	1860×1385×1200	5200
Fine	PEX250X750	250×750	20~60	210	10~45	320	30	1751×1400×1515	4900
Fine	PEX250X1000	250×1000	20~50	210	15~50	330	30	1550×1990×1370	6500
Fine	PEX250X1200	250×1200	20~60	210	20~60	320	45	1650×2170×1465	9000
Fine	PEX300X1300	300×1300	25~65	250	20~80	330	55	1980×2456×1740	11500

Get Price WhatsApp

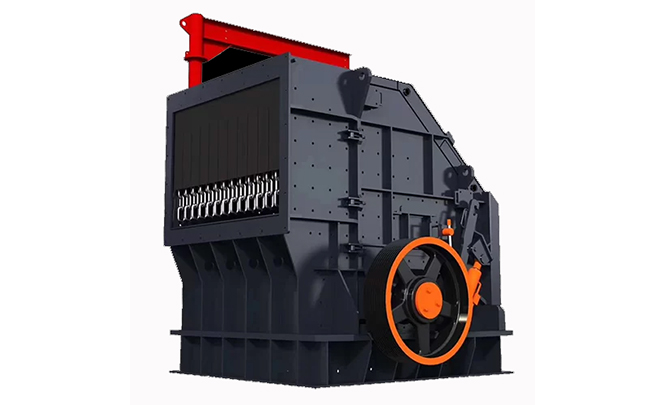

Impact Crusher

Secondary and tertiary crushing for medium-hard to soft rock, delivering a cubic, well-shaped product for asphalt and concrete.

Suitable Material

PebbleGraniteBasaltLimestone

Technical Parameters

Model	Rotor (mm)	Feed Opening (mm)	Max Feed (mm)	Capacity (t/h)	Power (kW)	Weight (t)	Overall (mm)
PF-1007	1000×700	400×730	300	30-50	37-55	9.5	2400×1558×2660
PF-1010	1000×1050	400×1080	350	50-80	55-75	12.2	2400×2250×2620
PF-1210	1250×1050	400×1080	350	70-120	110-132	14.9	2690×2338×2890
PF-1214	1250×1400	400×1430	350	110-180	132-160	18.6	2690×2688×2890
PF-1315	1320×1500	860×1520	500	160-250	180-260	19.3	3096×3273×2667
PF-1320	1320×2000	860×2030	500	160-350	300-375	28	3096×3560×3185
PF-1520	1500×2000	1315×2040	700	300-500	400-450	42.8	3890×3560×3220

Get Price WhatsApp

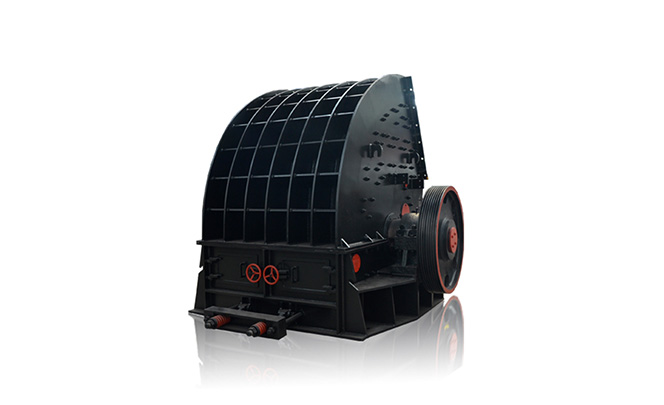

Hammer Crusher

High-capacity single-stage crushing for limestone, coal, gypsum and cement raw materials at a low operating cost.

Suitable Material

CoalCement ClinkerGypsumLimestone

Technical Parameters

Model	Rotation Dia (mm)	Discharge (mm)	Max Feed (mm)	Capacity (t/h)	Power (kW)
PC-φ600×400	φ600	10~30	100	12~15	18.5
PC-φ600×600	φ600	10~30	100	12~18	30
PC-φ800×700	φ800	10~45	200	13~35	37
PC-φ800×800	φ800	10~45	200	13~40	37
PC-φ1000×1000	φ1000	8~60	300	30~80	55
PC-φ1000×1300	φ1000	8~60	200	35~100	110
PC-φ1000×1500	φ1000	8~60	300	40~100	132
PC-φ1200×1600	φ1200	10~70	500	100~250	—

Get Price WhatsApp

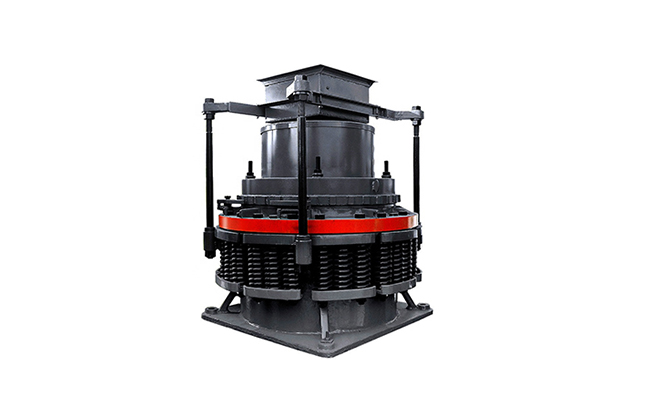

Spring Cone Crusher

Robust secondary crushing for iron ore, copper, quartz and hard aggregates with a simple, proven spring-release system.

Suitable Material

Iron OreCopper OreQuartzGranite

Technical Parameters

Type	Model	Cone Dia (mm)	Inlet (mm)	Max Feed (mm)	Outlet (mm)	Power (kW)	Capacity (t/h)
Standard	PYB-600/75	600	75	65	12~25	30	40
Standard	PYB-900/135	900	135	110	15~50	55	50~90
Standard	PYB-1200/170	1200	170	145	20~50	110	110~168
Standard	PYB-1750/250	1750	250	215	25~60	155	280~480
Standard	PYB-2100/350	2100	350	300	30~60	280/210	500~800
Standard	PYB-2200/350	2200	350	280	—	—	500~1000
Medium	PYZ-900/70	900	70	60	8~20	55	20~65
Medium	PYZ-1200/115	1200	115	100	8~25	110	42~135
Medium	PYZ-1750/215	1750	215	180	10~30	155	175~320
Medium	PYZ-2200/275	2200	275	230	—	—	200~580
Short Head	PYD-600/40	600	40	35	3~13	30	12~23
Short Head	PYD-900/50	900	50	40	—	55	15~50
Short Head	PYD-1200/60	1200	60	50	3~15	110	18~105
Short Head	PYD-1750/100	1750	100	85	5~15	155	75~230
Short Head	PYD-2200/130	2200	130	100	—	—	125~350

Get Price WhatsApp

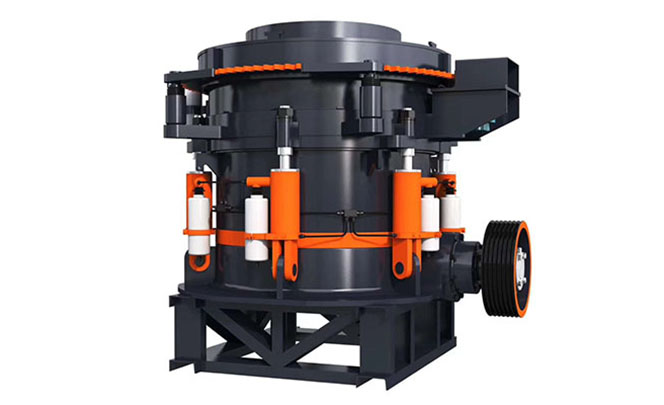

Hydraulic Cone Crusher

High-efficiency secondary and tertiary crushing with hydraulic setting, tramp release and laminated crushing for a fine, uniform product.

Suitable Material

GraniteBasaltGold OreCopper Ore

Technical Parameters

Model	Cavity	Max Feed (mm)	Min Discharge (mm)	Power (kW)	Capacity (t/h)
XHP-100	C	95	13	75-110	60-180
XHP-100	M	65	14	75-110	60-180
XHP-100	F1	48	11	75-110	60-180
XHP-100	F2	10	5	75-110	60-180
XHP-200	C	185	19	132-200	90-250
XHP-200	M	125	17	132-200	90-250
XHP-200	F1	95	13	132-200	90-250
XHP-200	F2	10	5	132-200	90-250
XHP-300	C1	230	25	180-250	115-440
XHP-300	C2	210	20	180-250	115-440
XHP-300	M	150	15	180-250	115-440
XHP-300	F1	105	10	180-250	115-440
XHP-300	F2	20	6	180-250	115-440
XHP-400	C1	295	30	280-355	140-630
XHP-400	C2	250	25	280-355	140-630
XHP-400	M	195	20	280-355	140-630
XHP-400	F1	110	14	280-355	140-630
XHP-400	F2	30	6	280-355	140-630
XHP-500	C1	330	30	355-450	175-790
XHP-500	C2	285	25	355-450	175-790
XHP-500	M	200	20	355-450	175-790
XHP-500	F1	133	16	355-450	175-790
XHP-500	F2	35	6	355-450	175-790
XHP-800	C1	353	32	550-630	260-1200
XHP-800	C2	297	32	550-630	260-1200
XHP-800	M	267	25	550-630	260-1200
XHP-800	F1	219	16	550-630	260-1200
XHP-800	F2	40	6	550-630	260-1200

Get Price WhatsApp

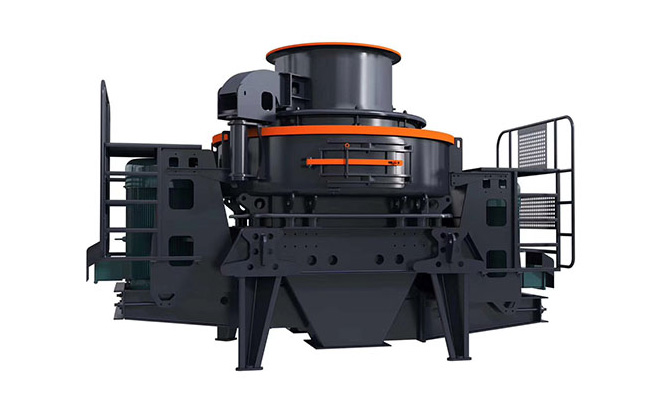

VSI Sand Making Machine

Rock-on-rock shaping and manufactured-sand production for high-quality concrete and asphalt aggregates.

Suitable Material

River PebbleGraniteQuartzLimestone

Technical Parameters

Model	Cap. Center+Sides (t/h)	Cap. Center (t/h)	Feed Soft (mm)	Feed Hard (mm)	Speed (r/min)	Dual Motor (kW)
VSI-7611	120-180	60-90	<30	<25	1700-1890	110-150
VSI-8518	200-260	100-130	<35	<30	1520-1690	180-220
VSI-9526	300-380	150-190	<40	<35	1360-1510	264-320
VSI-1140	400-450	225-260	<40	<35	1180-1310	400-440
VSI-1145	450-520	250-360	<40	<35	1100-1310	400-440
VSI-1150	500-600	350-400	<50	<40	1000-1300	250-300
VSI-1263	550-640	450-500	<50	<40	900-1000	300-350

Get Price WhatsApp

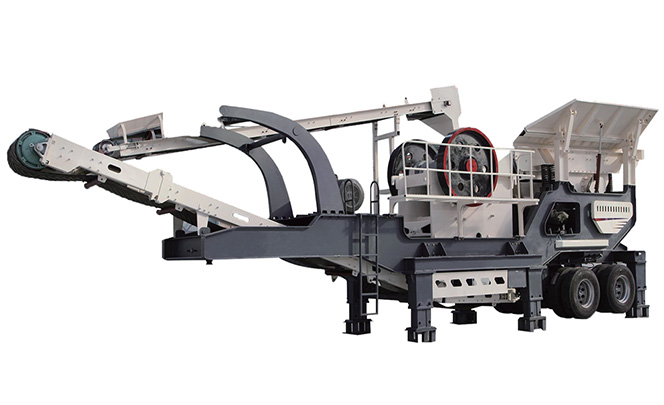

Mobile Crushing Plant

Wheel or crawler mounted jaw, cone or impact units for flexible, fast-deployed crushing at quarry or mine sites.

Configuration

Jaw + ScreenCone + ScreenImpact + Screen

Get Price WhatsApp

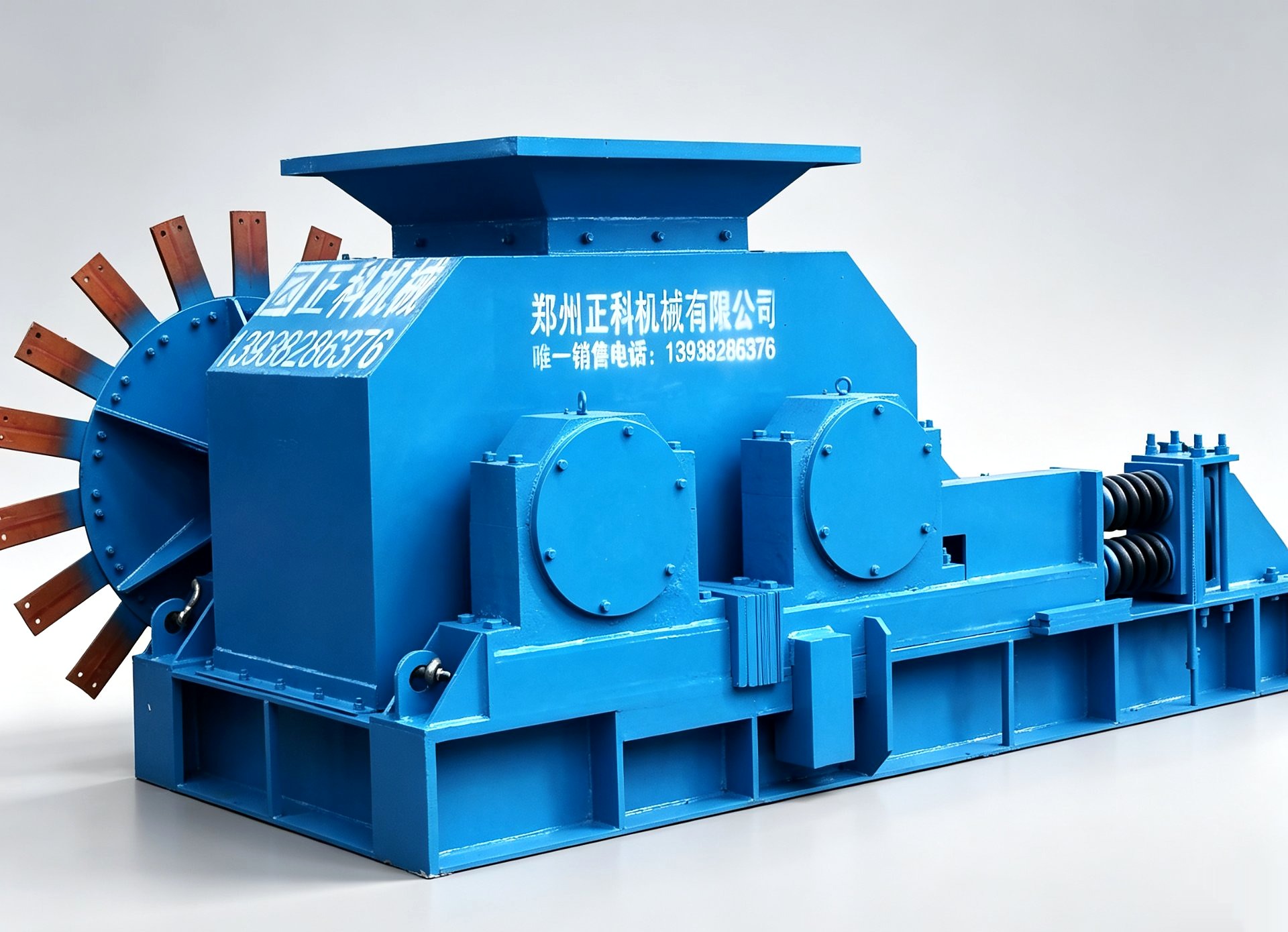

Double Roller Crusher

Medium and fine crushing for coal, cement clinker, shale and other brittle materials with an adjustable discharge size.

Suitable Material

CoalLimestoneCement ClinkerShale

Get Price WhatsApp

Jaw Crusher

Impact Crusher

Hammer Crusher

Spring Cone Crusher

Hydraulic Cone Crusher

VSI Sand Making Machine

Mobile Crushing Plant

Double Roller Crusher

Not Sure Which Crusher Fits Your Material?
