Recovery and separation equipment for mineral and ore processing projects. We provide gravity, magnetic, flotation and dewatering units for gold, copper, iron, tin and rare earth operations.

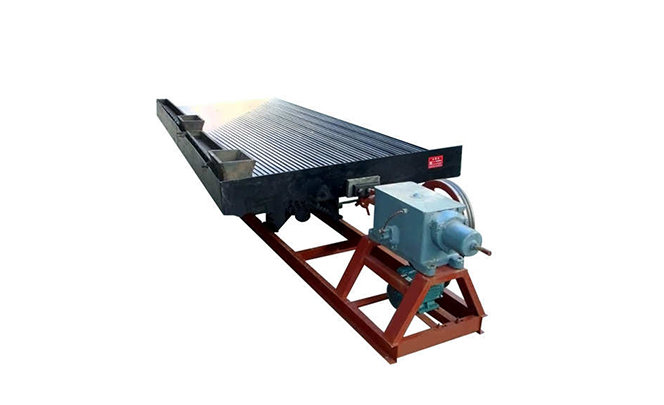

Gravity concentration of fine gold, tin, tungsten, tantalum and niobium with high separation precision.
| Model | Stroke (mm) | Feed Size (mm) | Feed Density | Capacity (t/h) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|
| 6S-4550×2355×1546 | 8-22 | 2-0.074 | 15-30 | 0.6-2.5 | 1.1 | 800 |
| LY-3000×1620×1360 | 6-30 | 2-0.074 | 10-30 | 0.4-1.5 | 1.1 | 550 |
| LY-2100×1050×850 | 12-28 | 2-0.074 | 10-30 | 0.3-0.8 | 1.1 | 350 |
| LY-1100×500×430 | 9-17 | 2-0.074 | 10-30 | 0.05-0.2 | 0.55 | 150 |

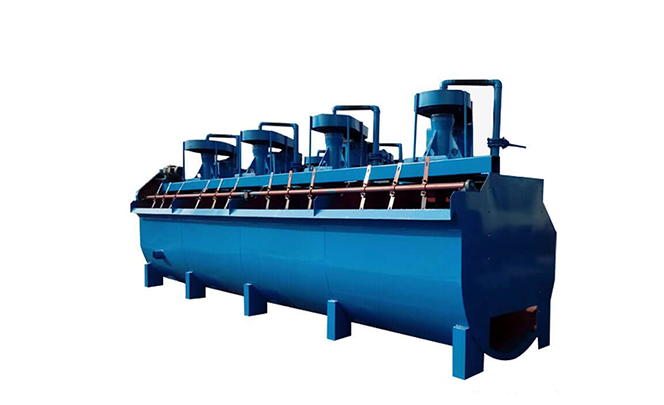

Selective recovery of copper, lead, zinc, gold and silver from sulfide ores with adjustable aeration.
| Model | Volume (m3) | Cell Size (mm) | Impeller Dia (mm) | Impeller Speed (r/min) | Capacity (m3/min) | Power (kW) | Cell Weight (kg) |
|---|---|---|---|---|---|---|---|
| SF-0.37 | 0.37 | 700×700×750 | 296 | 386 | 0.02-0.4 | 1.5/0.55 | 468 |
| SF-0.7 | 0.7 | 820×900×950 | 350 | 400 | 0.3-0.9 | 3/1.1 | 805 |
| SF-1.2 | 1.2 | 1100×1100×1100 | 450 | 312 | 0.6-1.2 | 5.5/1.1 | 1373 |
| SF-2.8 | 2.8 | 1700×1600×1150 | 550 | 268 | 1.5-3.5 | 11/1.5 | 2138 |
| SF-4 | 4 | 1850×2050×1200 | 650 | 220 | 2-4 | 15/1.5 | 2582 |
| SF-8 | 8 | 2200×2900×1400 | 760 | 191 | 4-8 | 30/1.5 | 4129 |
| SF-10 | 10 | 2200×2900×1700 | 760 | 191 | 5-10 | 30/1.5 | 4486 |
| SF-16 | 16 | 2850×3800×1700 | 760 | 191 | 5-16 | 30×2/1.5 | 8320 |
| SF-20 | 20 | 2850×3800×2000 | 760 | 191 | 5-20 | 30×2/1.5 | 9828 |
| JK-3A | 0.35 | 700×700×700 | 300 | 483 | 0.18-0.4 | 2.2/0.55 | 430 |
| JK-4A | 0.62 | 820×900×850 | 350 | 400 | 0.3-0.9 | 3/1.1 | 755 |
| JK-5A | 1.1 | 1100×1100×1000 | 500 | 330 | 0.6-1.6 | 5.5/1.1 | 1416 |
| JK-6A | 2.8 | 1750×1600×1100 | 600 | 280 | 1.5-3.5 | 11/1.1 | 2113 |
| JK7A | 5.8 | 2200×2200×1200 | 750 | 240 | 3-7 | 22/1.5 | 3400 |

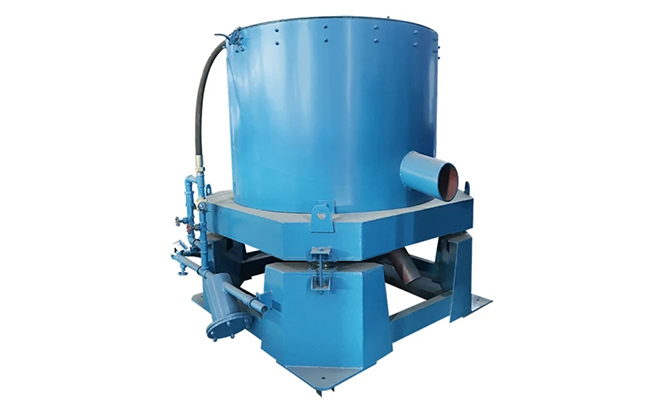

High-recovery gravity concentration of fine free gold and other heavy precious metals.
| Model | Feed (t/h) | Fluidization Water (m3/h) | Pressure (MPa) | Feed Size (mm) | Bowl Speed (r/min) | Concentrate (kg) | Power (kW) | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|---|
| STLB-20 | 1-2 | 1-2 | 0.05-0.1 | 0-4 | 800 | 2-3 | 0.75 | 160 | 940×700×1000 |
| STLB-30 | 2-3 | 4-6 | 0.1-0.2 | 0-4 | 600 | 10-20 | 1.5 | 600 | 1200×1250×1250 |
| STLB-60 | 10-20 | 10-15 | 0.1-0.2 | 0-5 | 480 | 25-40 | 4 | 1400 | 1850×1550×1600 |
| STLB-80 | 30-40 | 20-30 | 0.1-0.2 | 0-6 | 400 | 45-60 | 11 | 2200 | 2000×1800×1900 |
| STLB-100 | 50-80 | 17-25 | 0.1-0.3 | 0-6 | 360 | 70-80 | 18.5 | 3700 | 2300×2000×2300 |

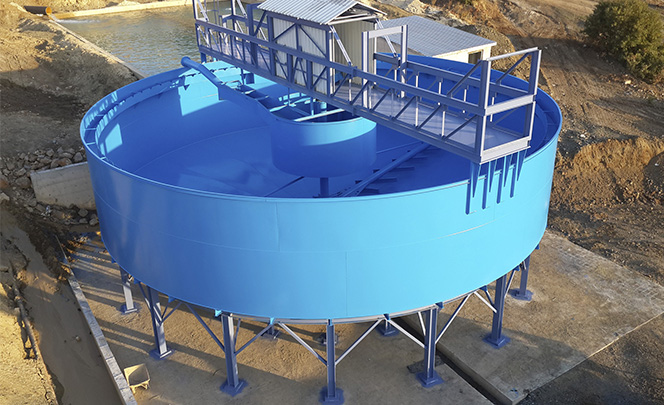

Solid-liquid separation and process-water recovery for flotation tailings and concentrates.
| Model | Diameter (mm) | Depth (mm) | Settling Area (m2) | Capacity (t/d) | Power (kW) |
|---|---|---|---|---|---|
| MT-2.5 | 2500 | 1850 | 4.9 | 5-22.4 | 1.5 |
| MT-3 | 3600 | 1800 | 10.2 | 5-28.5 | 1.5 |
| MT-5 | 5000 | 2956 | 16 | 16-90 | 4 |
| MT-6 | 6000 | 2956 | 28.3 | 98 | 4 |
| MT-7 | 7000 | 3000 | 38.5 | 140 | 4 |
| MT-8 | 8000 | 3318 | 50.2 | 185 | 5.5 |
| MT-9 | 9000 | 3376 | 63 | 210 | 5.5 |
| MT-12 | 12000 | 3600 | 113 | 370 | 5.5 |
| MT-15 | 15000 | 4000 | 176 | 580 | 5.5 |
| MT-18 | 18000 | 4400 | 255 | 960 | 7.5 |
| MT-20 | 20000 | 4400 | 315 | 1400 | 11 |

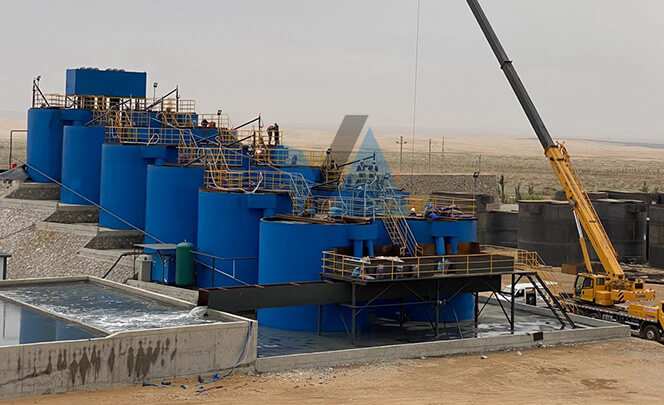

Agitation leaching for gold, silver and copper with efficient solid suspension and oxygen transfer.
| Model | Tank (D×H mm) | Eff. Vol (m3) | Impeller Speed (r/min) | Impeller Dia (mm) | Power (kW) | Reducer | Tank Wt (kg) | Total Wt (kg) |
|---|---|---|---|---|---|---|---|---|
| SJ2.0X2.5 | 2000×2500 | 7.07 | 52 | 909 | 2.2 | Y100L-4 | 1609 | 2144 |
| SJ2.5X2.5 | 2500×2500 | 10.8 | 43 | 935 | 4 | Y112M-4 | 2159 | 2729 |
| SJ2.5X3.15 | 2500×3150 | 13.92 | 52 | 935 | 2.2 | Y100L1-4 | 2398 | 3095 |
| SJ3.0X3.0 | 3000×3000 | 19 | 43 | 1130 | 4 | Y112M-4 | 3480 | 4583 |
| SJ3.0X3.15 | 3000×3150 | 20 | 43 | 1130 | 4 | Y112M-4 | 3480 | 4160 |
| SJ3.0X3.5 | 3000×3500 | 22.97 | 43 | 1130 | 4 | Y112M-4 | 3211 | 4334 |
| SJ3.15X3.55 | 3150×3550 | 25.73 | 43 | 1260 | 4 | Y112M-4 | 3433 | 4322 |
| SJ3.5X3.5 | 3500×3500 | 31.3 | 52 | 1310 | 5.5 | Y132S-4 | 3480 | 5025 |
| SJ3.5X4.0 | 3500×4000 | 35.6 | 52 | 1310 | 5.5 | Y132S-4 | 4230 | 5429 |
| SJ3.55X4.0 | 3550×4000 | 36.8 | 43 | 1310 | 4 | Y132S-4 | 4260 | 5025 |
| SJ3.7X4.2 | 3700×4200 | 42 | 42 | 1310 | 4 | Y112M-4 | 5266 | 6153 |
| SJ4.0X4.5 | 4000×4500 | 52.78 | 35 | 1750 | 7.5 | Y132M-4 | 6397 | 7569 |
| SJ4.0X6.0 | 4000×6000 | 71 | 33 | 1750 | 11 | Y160M-4 | 7681 | 9200 |
| SJ4.5X5.0 | 4500×5000 | 74.75 | 35 | 1750 | 7.5 | Y132M-4 | 8614 | 10864 |
| SJ5.0X5.6 | 5000×5600 | 104.5 | 31 | 2046 | 11 | Y160M-4 | 8740 | 14291 |
| SJ5.5X6.0 | 5500×6000 | 135.42 | 31 | 2100 | 11 | Y160M-4 | 12467 | 18745 |
| SJ6.5X7.0 | 6500×7000 | 215 | 21 | 2400 | 22 | Y180L-4 | 17890 | 25978 |
| SJ7.0X7.5 | 7000×7500 | 269 | 21 | 2400 | 22 | Y200L2-6 | 20505 | 29030 |
| SJ7.5X8.0 | 7500×8000 | 331 | 23 | 2900 | 22 | Y200L2-6 | 22552 | 32796 |
| SJ8.0X8.5 | 8000×8500 | 402 | 18.5 | 3300 | 30 | Y250M-8 | 30559 | 42467 |
| SJ8.5X9.0 | 8500×9000 | 480 | 18.5 | 3300 | 30 | Y250M-8 | 34130 | 46623 |
Share your ore type, grade and target concentrate specifications. Our team will propose the right combination of crushing, grinding, separation and dewatering equipment.
