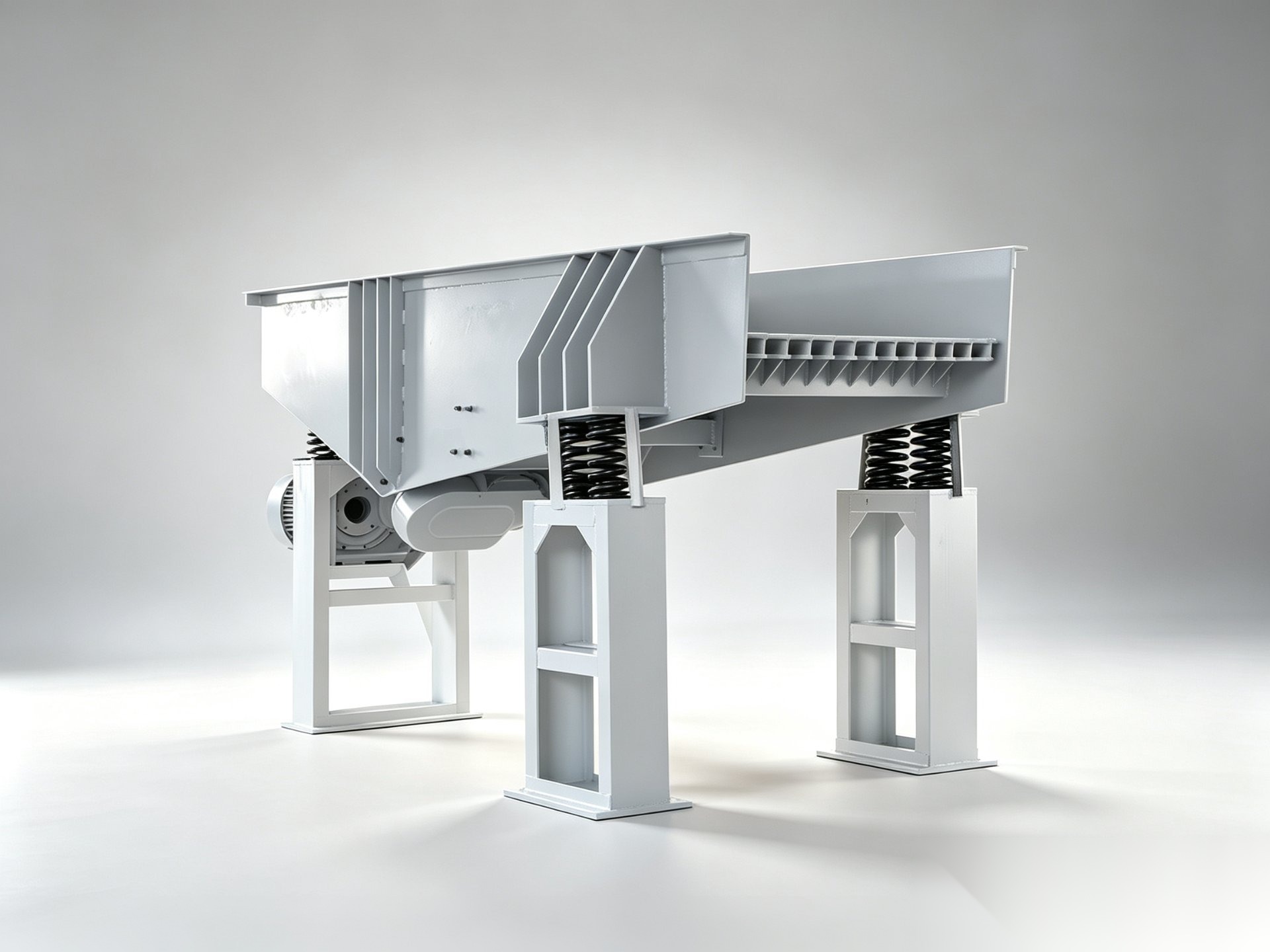

Vibrating Feeder
Electromagnetic or eccentric vibrator drive for uniform feeding of bulk material from hopper to primary crusher or conveyor.
Application
QuarryMiningRecyclingAggregate
Technical Parameters
| Model | Feed Size (mm) | Capacity (t/h) | Power (kW) | Angle (°) | Weight (kg) | Slot (mm) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| GZD-650×2300 | 300 | 80 | 1.1×2 | 10 | 2798 | 650×2300 | 2300×1360×780 |
| GZD-750×2500 | 350 | 100 | 1.1×2 | 10 | 3260 | 750×2500 | 2500×1460×780 |
| GZD-850×3000 | 400 | 120 | 3×2 | 10 | 3607 | 850×3000 | 3110×1800×1600 |
| GZD-1000×4200 | 500 | 150 | 5.5×2 | 10 | 3895 | 1000×3600 | 3850×1950×1630 |
| GZD-1100×4200 | 580 | 240 | 5.5×2 | 10 | 4170 | 1100×4200 | 4400×2050×1660 |
| GZD-1300×4900 | 650 | 450 | 7.5×2 | 10 | 5200 | 1300×4900 | 5200×2350×1750 |
| GZD-1500×5600 | 1050 | 450-800 | 11×2 | 10 | 7500 | 1500×5600 | 5700×2000×1750 |
| ZSW-380×95 | 500 | 100-160 | 11 | 0 | 4823 | 3800×960 | 3820×1640×1320 |
| ZSW-490×110 | 630 | 150-320 | 15 | 0 | 6647 | 4900×1100 | 4980×1830×1320 |
| ZSW-490×130 | 750 | 400-600 | 22 | 0 | 8760 | 4900×1300 | 4980×2580×2083 |
| ZSW-600×130 | 750 | 400-600 | 22 | 0 | 9250 | 6000×1300 | 6082×2580×2083 |
| ZSW-600×150 | 800 | 500-700 | 30 | 0 | 10130 | 6000×1500 | 6086×2662×1912 |
| ZSW-600×180 | 800 | 700-1000 | 37 | 0 | 13750 | 6000×1800 | 6310×3262×2230 |
