Grinding Equipment

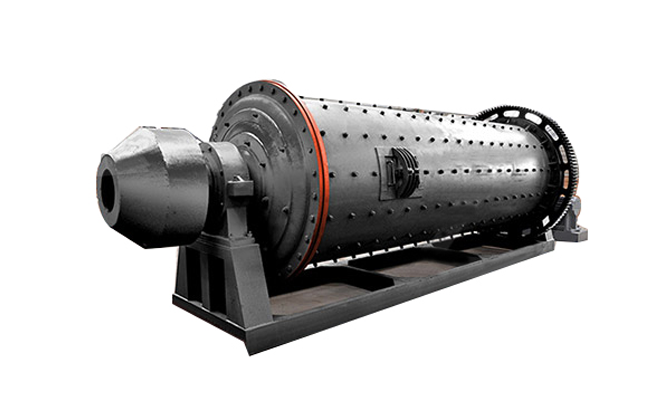

Wet or dry grinding of ore, cement, silicate and chemical products, with a wide choice of liner and discharge options.

Applications

Gold OreCopper OreCementSilica

Technical Parameters

Model	Cylinder Dia (mm)	Cylinder Len (mm)	Power (kW)	Capacity (t/h)	Eff. Vol (m3)	Max Ball (t)	Weight (kg)
MQSg 1212	1200	1200	22	0.17~4.1	1.14	2.4	9610
MQSg 1224	1200	2400	45	0.26~6.15	2.4	4.6	12692
MQSg 1240	1200	4000	80	0.34~8.3	3.8	7.8	15932
MQSg 1515	1500	1500	45	1.4~4.5	2.2	5	17125
MQSg 1530	1500	3000	80	2.8~9	5	10	21425
MQSg 1536	1500	3600	110	3~11	5.4	11.4	24213
MQSg 1545	1500	4500	130	3.5~12.5	7	12	27346
MQSg 1830	1800	3000	180	4.5~27	6.65	14	31850
MQSg 1836	1800	3600	180	4.5~29	8.2	13.8	35467
MQSg 1845	1800	4520	210	5~35	10.2	19	38909
MQSg 1856	1800	5620	210	6~40	12.2	22	41681
MQSg 1870	1800	7020	245	7~50	15	31.5	45166
MQSg 2122	2100	2200	155	5~29	6.6	20	38340
MQSg 2130	2100	3000	180	6.5~36	9	27	43100
MQSg 2136	2100	3600	210	7.5~42	10.8	23.5	45833
MQSg 2140	2100	4000	210	7.5~45	12.8	22.5	47262
MQSg 2145	2100	4500	280	10~50	13.5	23.6	52648
MQSg 2230	2200	3000	210	7.5~45	9.8	20.6	44600
MQSg 2430	2400	3000	280	7.2~92	11.5	22.5	59544
MQSg 2436	2400	3600	320	8~100	13.8	25.5	63932
MQSg 2442	2400	4200	320	8~110	16	30	67370
MQSg 2721	2700	2100	245	7.2~84	10.7	23	66743
MQSg 2727	2700	2700	280	7~110	13.8	29	71030
MQSg 2730	2700	3000	320	8~115	15.3	32	83909
MQSg 2732	2700	3200	320	8~120	15.7	32	88073
MQSg 2736	2700	3600	380	12~145	17.7	37	95300
MQSg 2740	2700	4000	380	12.5~152	19	42	98454
MQSg 2745	2700	4500	450	13~160	22	40	100016
MQSg 2747	2700	4700	475	13~170	23	45	101645
MQSg 2760	2700	6000	630	15~200	30	60	119546
MQSg 2836	2800	3600	400	13~160	19.7	41	106350
MQSg 3231	3200	3100	630	14~180	22.5	45	115430
MQSg 3245	3200	4500	800	95~110	32.8	65	147588
MQSg 3645	3600	4500	1250	115~170	41.5	76	195727

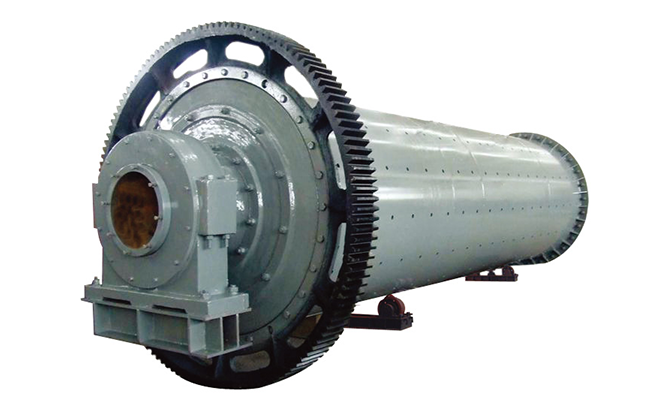

Coarse, even grinding for gravity-circuit feed, tungsten, tin and quartz sand where minimal over-grinding matters.

Applications

TungstenTinQuartzSand

Technical Parameters

Model	Cylinder Dia (mm)	Cylinder Len (mm)	Power (kW)	Capacity (t/h)	Eff. Vol (m3)	Weight (kg)
B0918	900	1800	22	0.62~3.2	0.9	5700
Bg0924	900	2400	22	0.81~4.3	1.2	6443
B1224	1200	2400	45	0.4~4.9	2.28	12308
B1530	1500	3000	95	5	—	19990
Bg1530	1500	3000	80	2.4~7.5	5	21210
Bg2130	2100	3000	180	14~35	9	42123
Bg2136	2100	3600	210	43~61	10.8	45800
Bg2430	2400	3000	280	11.5	—	55795
Bg2732	2700	3200	320	15.7	—	83110
Bg2736	2700	3600	380	32~86	17.7	90441
B2740	2700	4000	400	43~110	20.4	75000
B3040	3000	4000	570	54~135	26	90000
B3245	3200	4500	800	64~180	31	113000
B3645	3600	4500	1250	80~230	41.8	139000
B3654	3600	5400	1600	100~250	49.7	150000

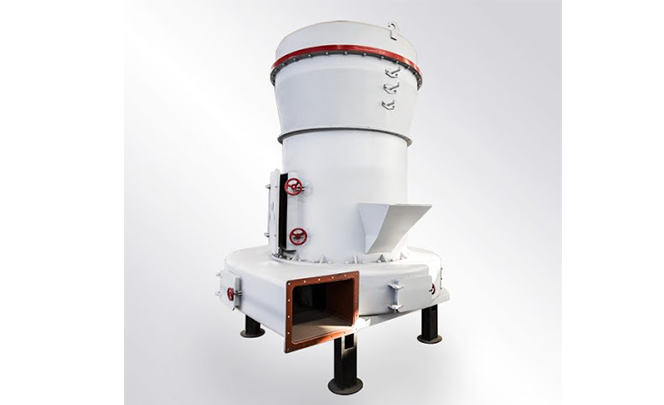

Fine-powder grinding for non-flammable minerals below Mohs 7 — limestone, barite, dolomite and gypsum.

Applications

BariteLimestoneGypsumDolomite

Technical Parameters

Model	Rollers	Roll Dia (mm)	Roll H (mm)	Ring Dia (mm)	Ring H (mm)	Feed (mm)	Output (mm)	Capacity (t/h)	Power (kW)	Overall (mm)
3R1410	3	140	100	495	100	<8	0.613-0.044	0.15-1.2	14.1	3340×2200×3200
3R2115	3	210	150	726	150	<15	0.613-0.044	0.28-1.8	28.2	4480×3100×3970
3R2615	3	260	150	865	150	<15	0.613-0.044	0.35-2.8	35.7	5000×4100×4850
3R2715	3	270	150	884	150	<15	0.613-0.044	0.40-3.4	42.7	5050×4150×4900
4R3016	4	300	160	990	160	<20	0.613-0.044	0.6-4.5	55	5250×5000×5500
4R3216	4	320	160	1073	160	<25	0.613-0.044	1.0-5.2	72.5	7700×7200×8800
