Washing Equipment

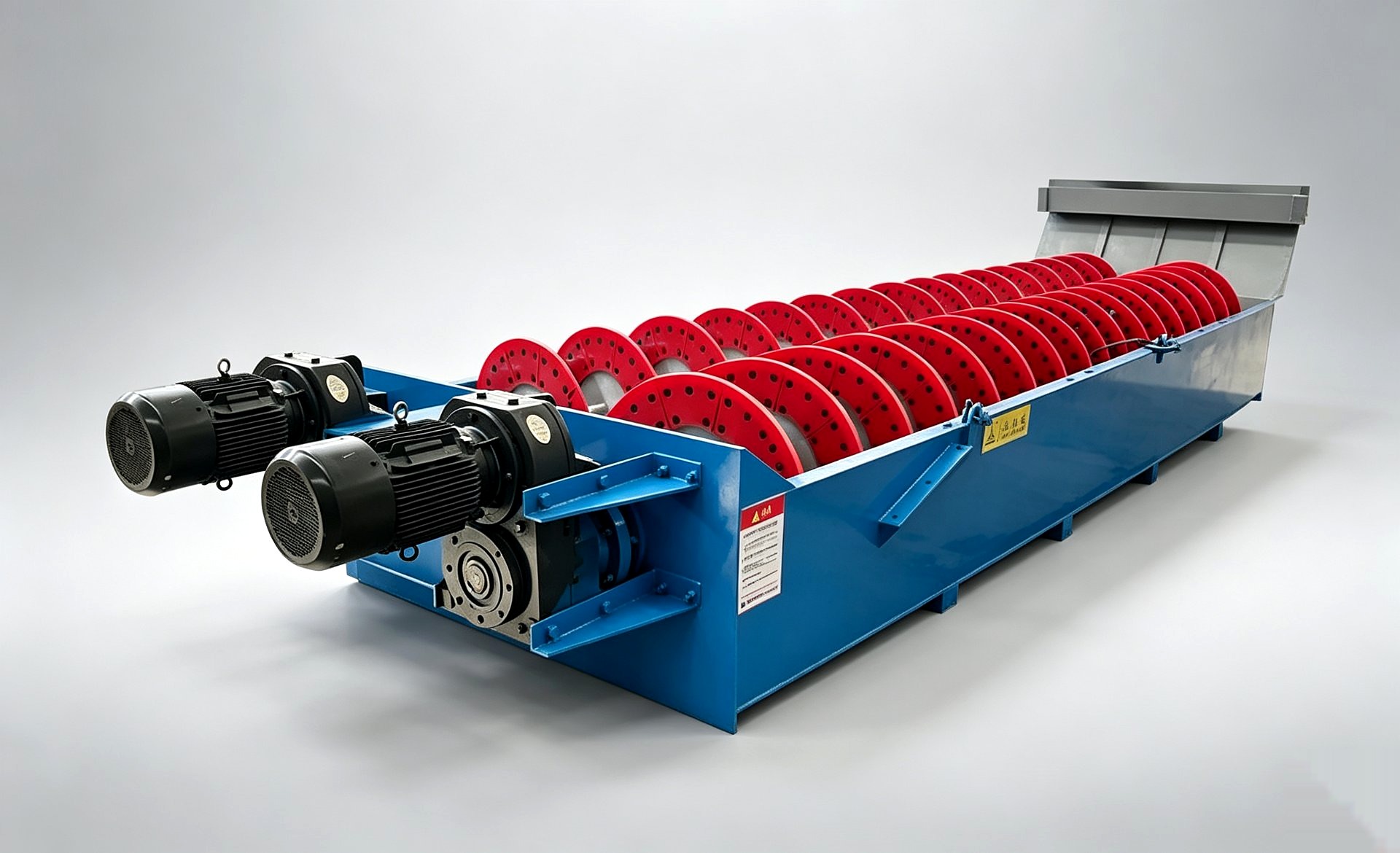

High-capacity washing and classification of coarse sand and gravel with heavy mud content, lifting clean material from the slurry.

Applications

River SandQuarry SandGravel

Technical Parameters

Model	Spiral Dia (mm)	Spiral Len (mm)	Speed (m/min)	Capacity (t/h)	Power (kW)	Dimensions (m)
XS0760	750	6000	18	15-30	7.5	7.6×1.4×1.5
XS1075	1000	7500	18	30-50	15	9.6×2×2.2
XS1275	1200	7500	16	50-80	18.5	9.8×2.1×2.2
XS1575	1500	7500	16	80-120	30	10.3×2.3×2.2
XS1590	1500	9000	16	120-150	30	11.8×2.4×2.2

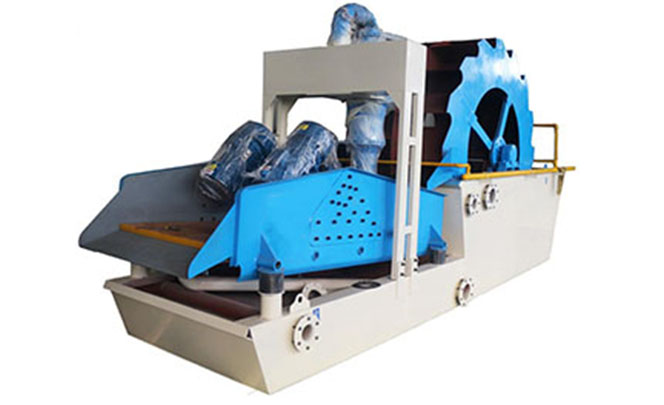

Compact, low-water-consumption washer that cleans construction and silica sand with minimal fine loss.

Applications

Silica SandConstruction SandAggregate

Technical Parameters

Model	Bucket Dia (mm)	Speed (r/min)	Feed (mm)	Capacity (t/h)	Power (kW)	Dimensions (mm)
XS2600	2600	2.5	≤10	30-60	5.5	3200×2270×2672
XS2800	2800	1.8	≤10	50-70	5.5	3700×2500×2990
XS3000	3000	1.44	≤10	70-100	7.5	3900×2700×2990
XS3200	3200	2.5	≤10	80-120	11	3965×3150×3300
XS3600	3600	1.21	≤10	120-180	15	4355×3400×3700
XS4500	4500	1	≤10	180-250	22	5155×3750×4600

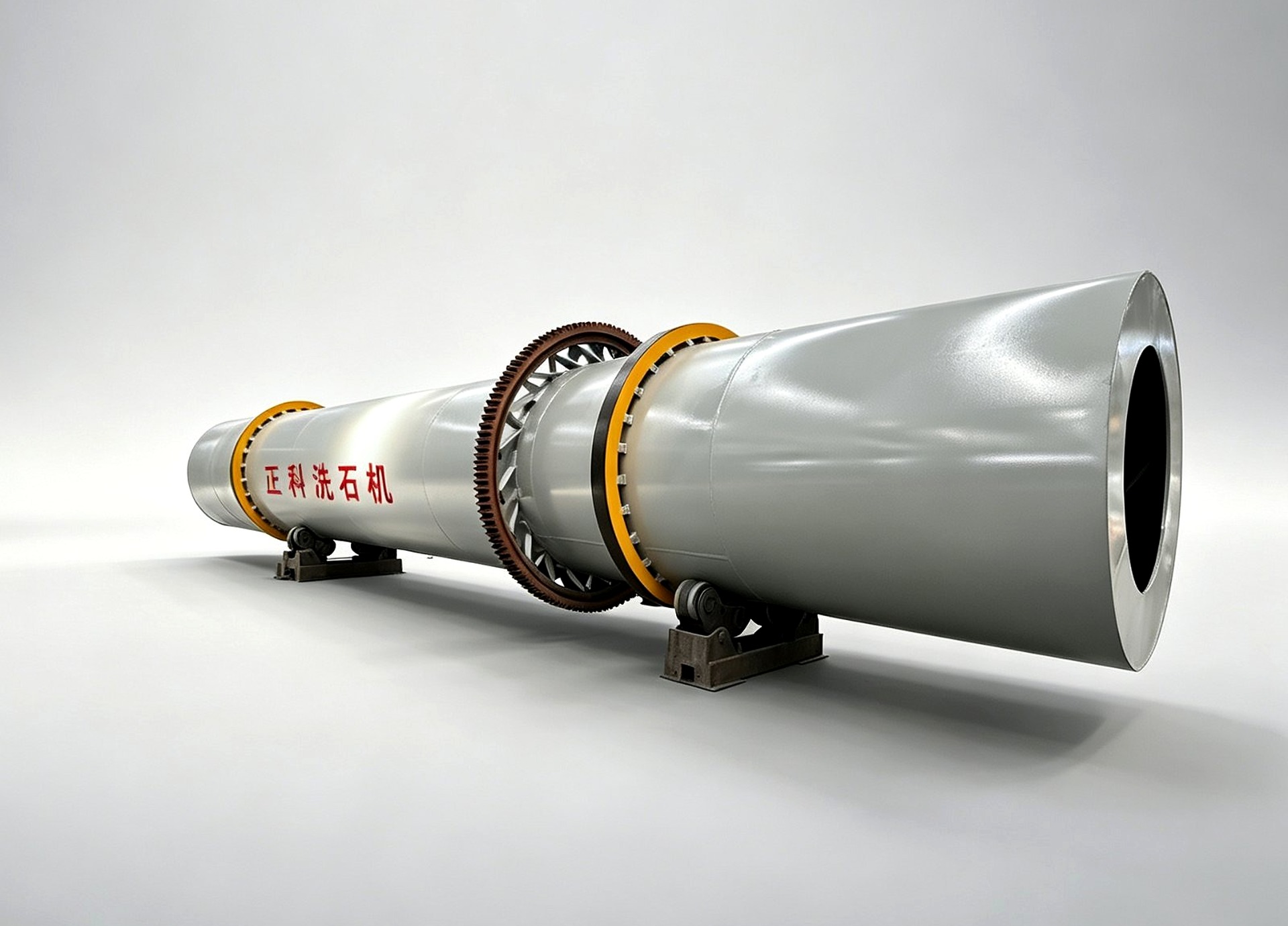

Heavy scrubbing for sticky clay ore, bauxite, manganese and construction aggregates in a rotating drum.

Applications

Clay OreBauxiteManganese

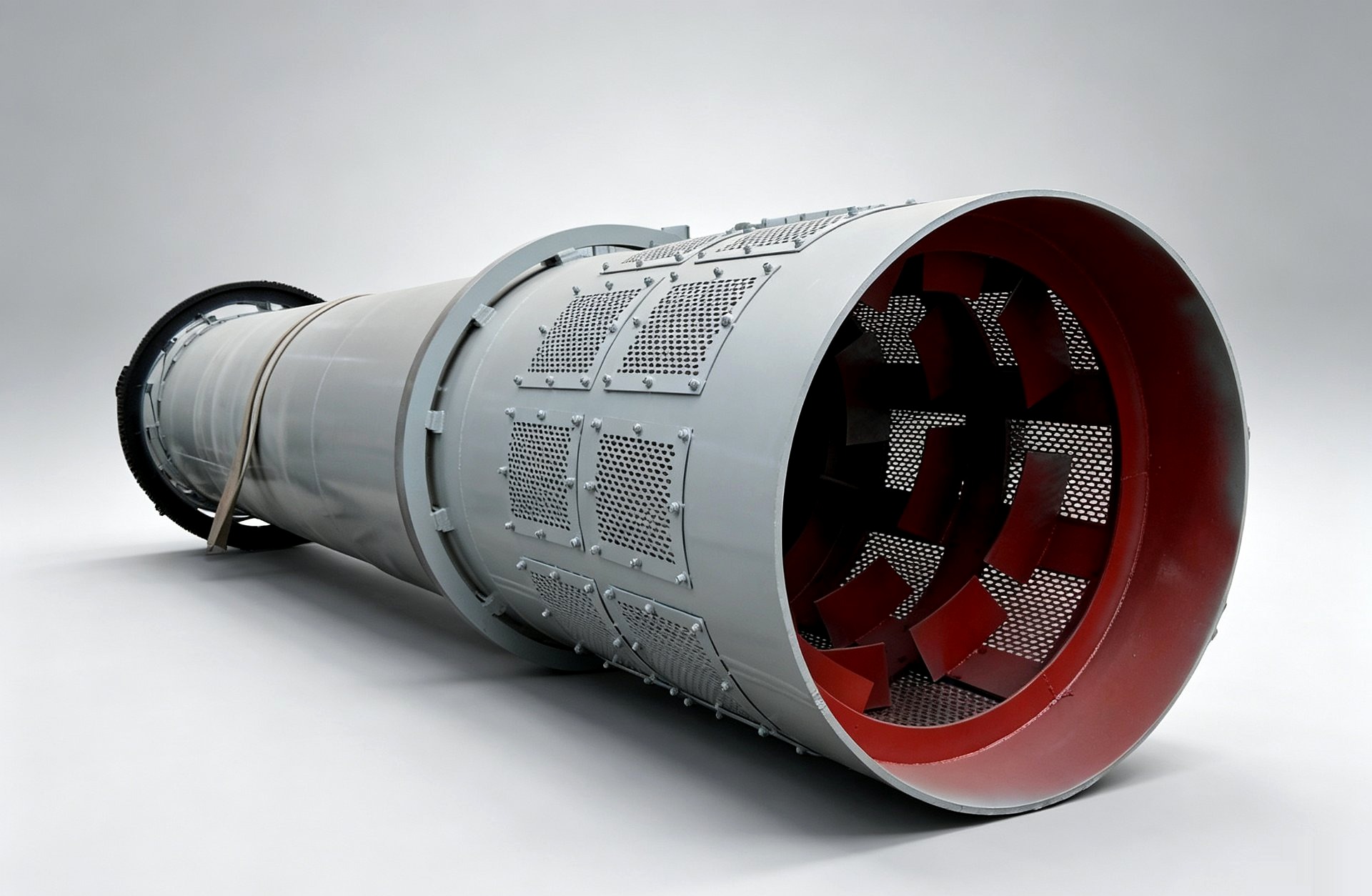

Combined scrubbing, screening and washing in one drum for alluvial gold, placer tin and coltan.

Applications

Alluvial GoldPlacer TinColtan

Technical Parameters

Model	Size (m)	Capacity (t/h)	Power (kW)	Feeder Hopper	Sluice Box	Water (kW)	Clay Scrubber	Trommel	Recovery
M50	7×2×3	50-100	24	2×2.2m	1×2m (2pcs)	7.5	1×2m	1.2×3m	98%
M100	8.5×2.5×3.5	100-150	55	3×2.7	1×4m (2pcs)	25	1.1×2.2m	1.5×3.2m	98%
M150	9.8×3×4	150-250	75	3.8×3	1×6m (3pcs)	45	1.3×2.5m	2×4m	98%
M200	12×3.2×4.5	260-400	120	4.5×3.5m	1×6m (5pcs)	85	1.5×2.5m	2×5.5m	98%
M400	15×3.5×5	400-450	200	6×4m	1×6m (7pcs)	150	2×2.5m	2×7m	98%

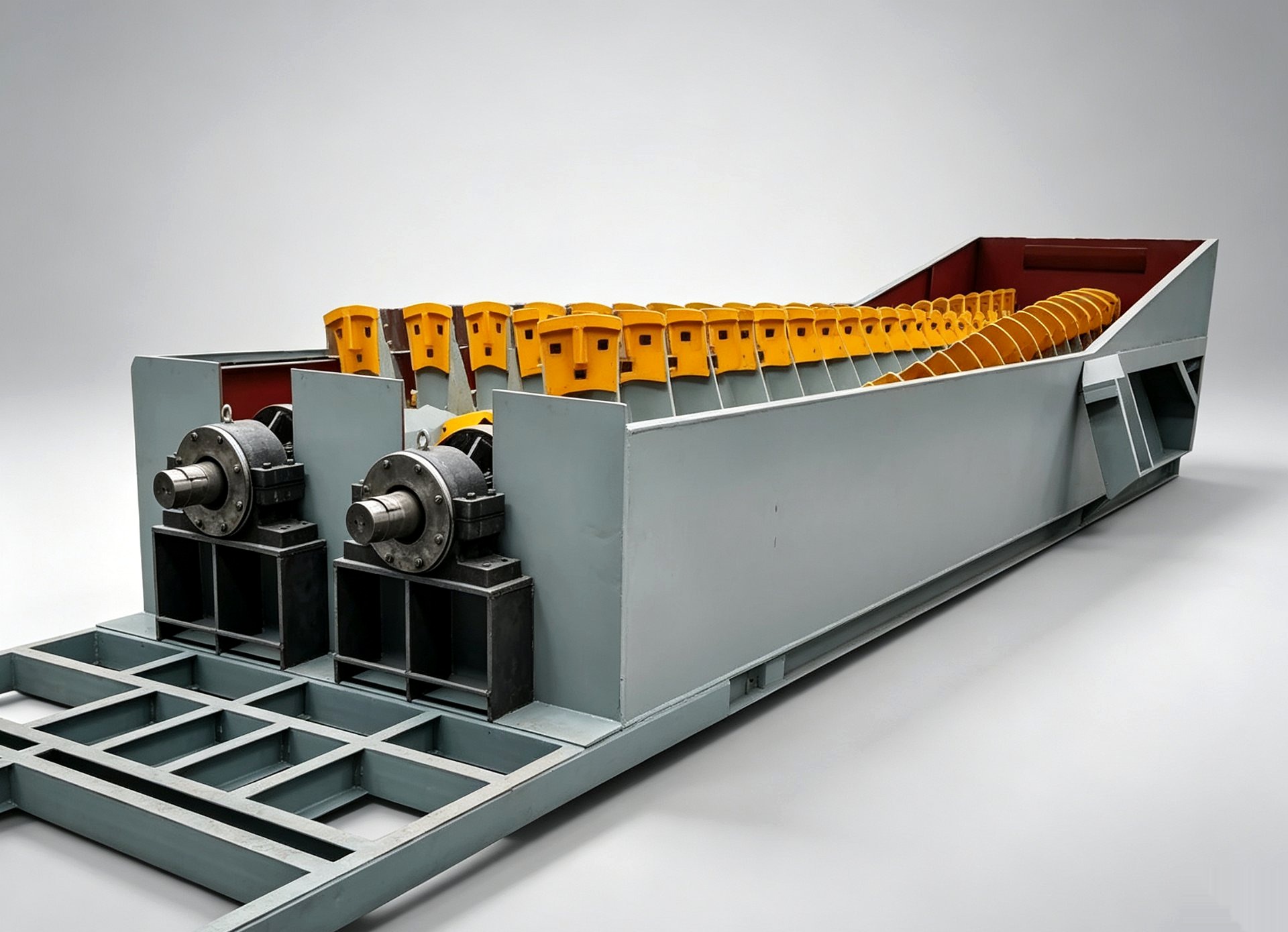

Twin-shaft attrition scrubbing for tough clay lumps, hard aggregates and sticky ore before screening.

Applications

Clay OreBauxiteManganeseAggregate

Technical Parameters

Model	Max Capacity	Max Feed (mm)	Power (kW)	RPM	Water (m3/hr)	Empty Weight	Tip Dia (mm)	Paddles
RX60	30-60 t/h	80	37	18-24	30-50	5 T	800	64
RX80	50-80 t/h	80	45	18-24	40-60	9 T	800	118
RX150	80-150 t/h	100	90	18-24	50-80	20 T	1300	136

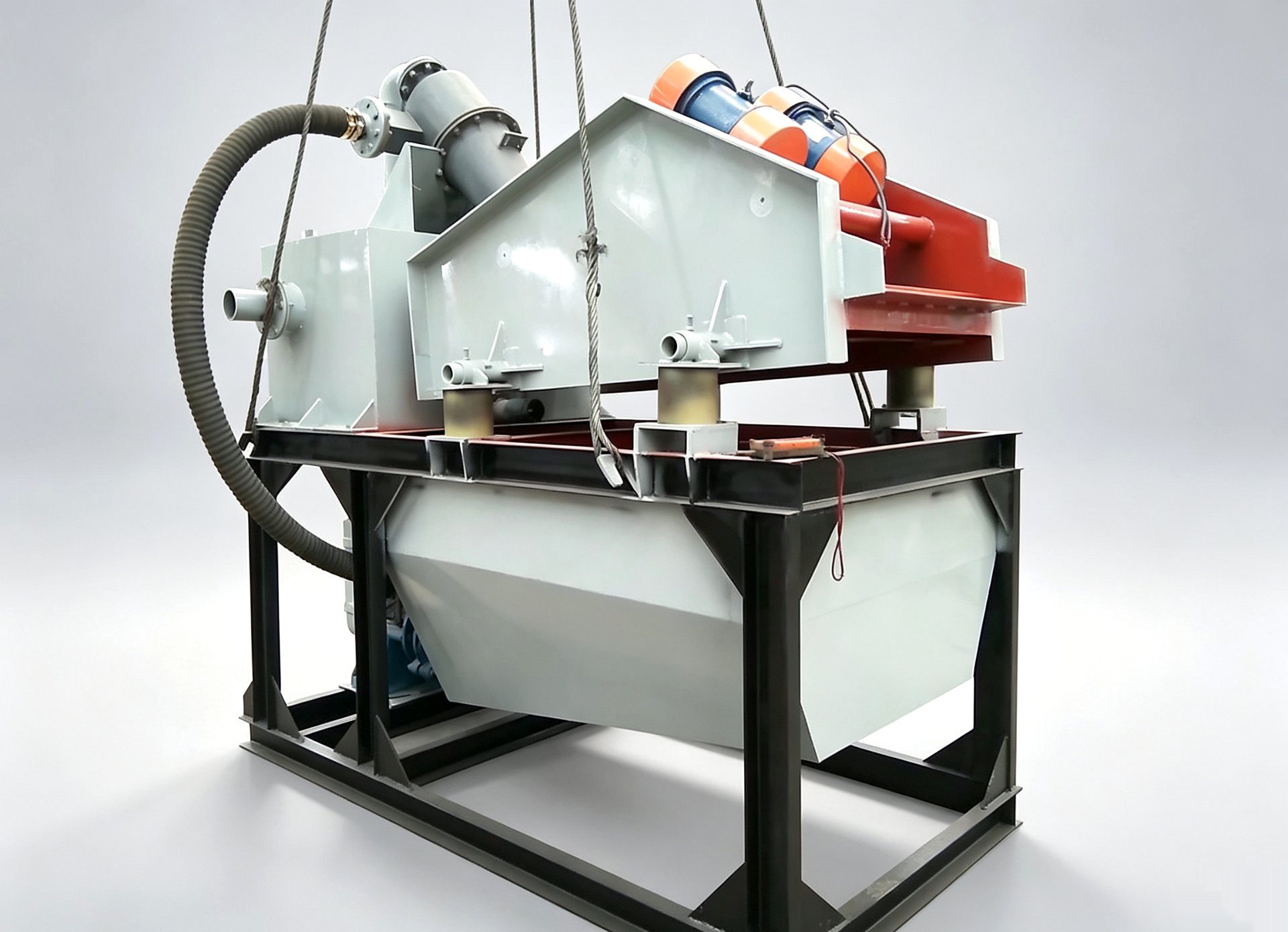

Recovers 80-95% of fine sand lost in washing water, raising yield and cutting tailings volume.

Applications

Sand PlantTailing PondHydrocyclone

Technical Parameters

Model	Sand Output (m3/h)	Fine Sand (m3/h)	Water (m3/h)	HP Separator	Impeller Sep.	Impeller Motor	Reducer	Dewatering Screen	Screen Motor	Vacuum Pump	Dimensions (mm)
26-30	20-50	—	50-80	300	2600	8-5.5kW	ZQ350	1000×2000	1.1kW×2	4-7.5kW	5400×2425×2680
28-50	50-120	—	60-130	500	2800	8-7.5kW	ZQ400	1250×2500	2.2kW×2	4-15kW	6100×2486×2850
30-70	120-180	—	150-200	700	3000	8-11kW	ZQ500	1500×3000	3kW×2	4-15kW×2	6600×2686×3050
